Key Features:
- Roll Size: 1.5m X 33.33m
- Coverage: 50m2
- Thickness: 10mm
- Weight: 18kg
- Thermal conductivity: 0.045 W/mk
- Use: Acoustic resilient layer for underneath floating screed flooring
Description:

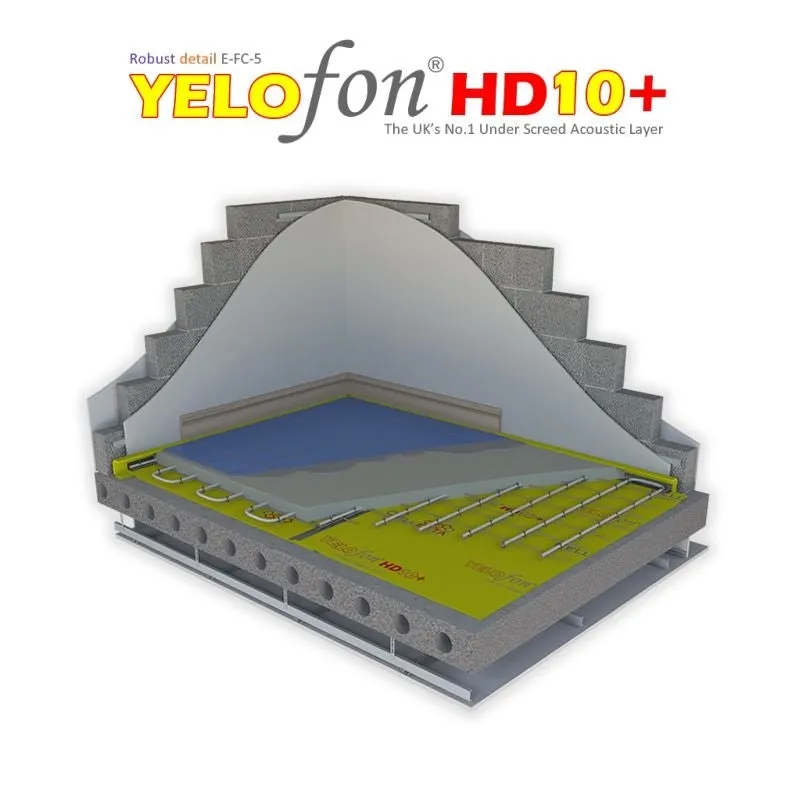

YELOfon HD10 is the ultimate acoustic resilient layer for underneath a floating screed and is one of the most iconic products in the Cellecta acoustic floor insulation range. The acclaimed high density, non cross-linked, HCFC free polyethylene resilient layer system carries its own proprietary Robust detail E-FC-5. YELOfon HD10 is a lightweight, easy to install system that delivers unrivaled acoustic performance when used to isolate a floating screed from structural concrete floors.

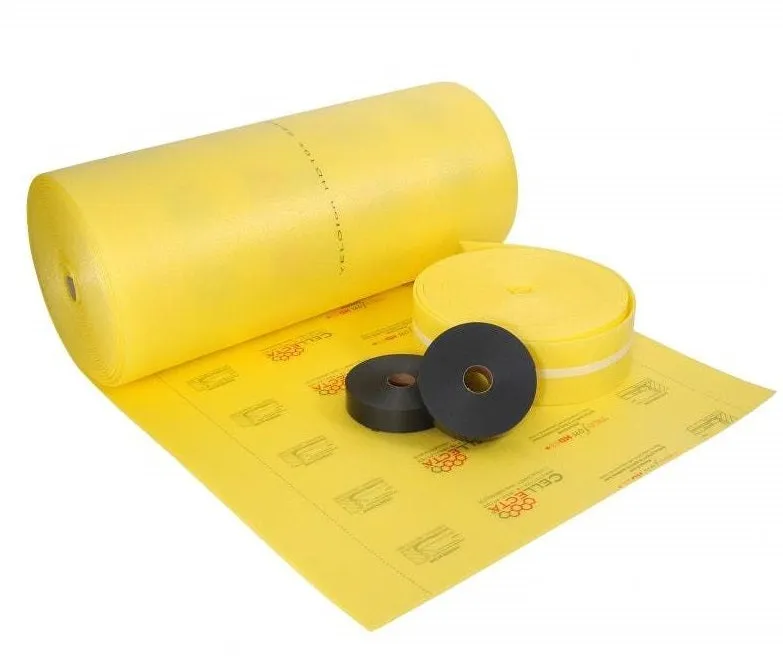

YELOfon HD10 is a complete system consisting of the following three key components. All components are supplied, no additional items are required. To comply with Robust detail E-FC-5 and achieve maximum soundproofing performance it is essential that all three components are installed.
- High impact sound deadening properties
- Easy to cut to size & Easy to handle and install
- Suitable for all types of concrete floors and screeds
- Compliant with Robust detail E-FC-5
Downloads & Data Sheets:
Product Installation Video:
